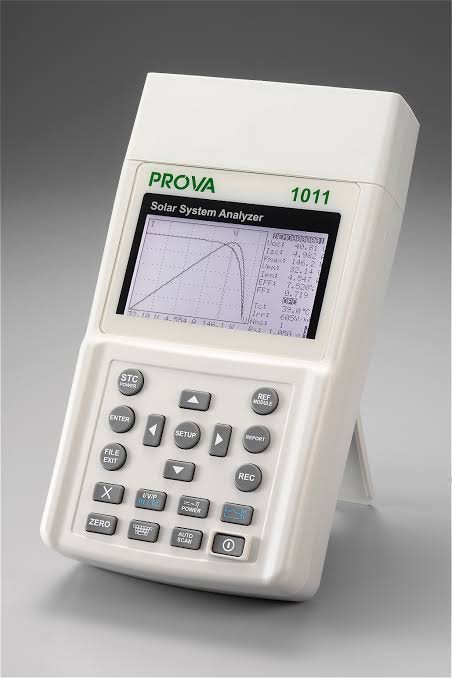

PROVA 1011 PROVA เครื่องวัดแสงอาทิตย์ SOLAR SYSTEM ANALYZER / ราคา



We need about 3 business days to prepare it for you and will send it to you by FedEx, UPS or DHL service. It will take about 6 days for you to get it.
*I-V curve test for solar system
*Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability)
*The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication
*Intelligent test logic with no personnel attendance required in the field
*Max. voltage (Vpm) at Pmax; Max. current (Ipm) at Pmax
*Voltage at open circuit (Voc); Current at short circuit (Isc)
*Efficiency (%) calculation of solar system
*Temperature measurement of solar panels
*Irradiance measurement of sun light
*Series resistance (Rs) calculation of solar panels
*I-V curve with cursor to display each data point
*With data logging/open function, the I-V curves of solar system can be analyzed/recorded for a period of time (e.g. 60 min.)
*Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard
*Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK, or NO OK)
*Users can set up the parameters of solar panels; users can set up the series numbers of solar panels
*Irradiances & temperatures of solar panels can be continuously measured, monitored and recorded
*Built-in calendar clock
*Rechargeable lithium battery; AC power adaptor
*Optical USB cable for PC
*With OPTIONAL power clamps (SOLAR 15 DC Current Probe and SOLAR 21 AC Power Clamp), continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases); calculate the efficiency of DC to AC power conversion and the efficiency of the max. output power
